메타트랜잭션 구현 및 검증 (EIP-2612, EIP-3009, Avalanche Mainnet)

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.0;

import "@openzeppelin/contracts/token/ERC20/ERC20.sol";
import "@openzeppelin/contracts/token/ERC20/extensions/ERC20Permit.sol";
import "./extensions/EIP3009.sol";

contract MetaToken is ERC20, ERC20Permit, EIP3009 {
    constructor()
        ERC20("MetaToken", "MTK")
        ERC20Permit("MetaToken")
    {
        _mint(msg.sender, 1000000 * 10 ** decimals());
    }
}

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.0;

import "@openzeppelin/contracts/token/ERC20/ERC20.sol";
import "@openzeppelin/contracts/utils/cryptography/EIP712.sol";
import "@openzeppelin/contracts/utils/cryptography/ECDSA.sol";

abstract contract EIP3009 is ERC20, EIP712 {
    bytes32 public constant TRANSFER_WITH_AUTHORIZATION_TYPEHASH =
        keccak256("TransferWithAuthorization(address from,address to,uint256 value,uint256 validAfter,uint256 validBefore,bytes32 nonce)");

    mapping(address => mapping(bytes32 => uint256)) private _authorizationStates;

    event AuthorizationUsed(address indexed authorizer, bytes32 indexed nonce);

    function authorizationState(address authorizer, bytes32 nonce) external view returns (bool) {
        return _authorizationStates[authorizer][nonce] == 1;
    }

    function transferWithAuthorization(
        address from,
        address to,
        uint256 value,
        uint256 validAfter,
        uint256 validBefore,
        bytes32 nonce,
        uint8 v,
        bytes32 r,
        bytes32 s
    ) external {
        require(block.timestamp > validAfter, "EIP3009: authorization is not yet valid");
        require(block.timestamp < validBefore, "EIP3009: authorization is expired");
        require(_authorizationStates[from][nonce] == 0, "EIP3009: authorization is used or canceled");

        bytes32 structHash = keccak256(abi.encode(TRANSFER_WITH_AUTHORIZATION_TYPEHASH, from, to, value, validAfter, validBefore, nonce));

        bytes32 digest = _hashTypedDataV4(structHash);

        address recoveredAddress = ECDSA.recover(digest, v, r, s);
        require(recoveredAddress == from, "EIP3009: invalid signature");

        _authorizationStates[from][nonce] = 1;
        emit AuthorizationUsed(from, nonce);

        _transfer(from, to, value);
    }
}

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.0;

import "@openzeppelin/contracts/token/ERC20/extensions/IERC20Permit.sol";
import "@openzeppelin/contracts/token/ERC20/IERC20.sol";
import "@openzeppelin/contracts/token/ERC20/utils/SafeERC20.sol";

contract Vault {
    using SafeERC20 for IERC20;
    IERC20Permit public immutable token;
    mapping(address => uint256) public balances;

    constructor(address _token) {
        token = IERC20Permit(_token);
    }

		// 일반적인 deposit
    function deposit(uint256 amount) external {
        IERC20(address(token)).safeTransferFrom(msg.sender, address(this), amount);
        balances[msg.sender] += amount;
    }

		// 2612 deposit
    function depositWithPermit(
        address owner,
        uint256 amount,
        uint256 deadline,
        uint8 v,
        bytes32 r,
        bytes32 s
    ) external {
        token.permit(owner, address(this), amount, deadline, v, r, s);
        IERC20(address(token)).safeTransferFrom(owner, address(this), amount);
        balances[owner] += amount;
    }
}

const { ethers } = require("hardhat");
const axios = require("axios");

const TOKEN_ADDRESS = "0x370DA190a3e39338c78f65E67cBD1D38e5592EbA";
const VAULT_ADDRESS = "0x22F1F84B385B5cDf4A9b9Ad097eb2114D81E09E8";
const RELAYER_API_URL = "http://localhost:3000";

async function main() {
  const [deployer, relayer, user] = await ethers.getSigners();
  const metaTokenFactory = await ethers.getContractFactory("MetaToken");
  const tokenContract = metaTokenFactory.attach(TOKEN_ADDRESS);
  const vaultFactory = await ethers.getContractFactory("Vault");
  const vaultContract = vaultFactory.attach(VAULT_ADDRESS);

  // EIP-712 설정 (vrs)
  const { chainId } = await ethers.provider.getNetwork();
  const typedDataDomain = {
    name: "MetaToken",
    version: "1",
    chainId,
    verifyingContract: TOKEN_ADDRESS,
  };

  // 유저 지갑으로 메타토큰 전송
  await (
    await tokenContract
      .connect(deployer)
      .transfer(user.address, ethers.parseEther("1000"))
  ).wait();

  async function getBalances() {
    const relayerBalance = await ethers.provider.getBalance(relayer.address);
    const userBalance = await ethers.provider.getBalance(user.address);
    return { relayerBalance, userBalance };
  }

  // -----------------------------------------------------
  //  전송 테스트
  // -----------------------------------------------------
  console.log(`\n[전송 테스트]`);

  const startBalances = await getBalances();

  // 1. 일반 전송 (유저가 가스비 지불)
  console.log(`transfer`);
  const directTransferTx = await tokenContract
    .connect(user)
    .transfer(deployer.address, ethers.parseEther("10"));
  await directTransferTx.wait();
  const afterDirectTransferBalances = await getBalances();

  console.log(
    `유저가 지불한 가스비: ${ethers.formatEther(
      startBalances.userBalance - afterDirectTransferBalances.userBalance
    )} AVAX`
  );

  // 2. 3009 활용한 전송 (릴레이어가 가스비 지불)
  console.log(`transfer + 3009`);
  const metaTransferAmount = ethers.parseEther("10");
  const metaTransferNonce = ethers.hexlify(ethers.randomBytes(32));
  const metaTransferMessage = {
    from: user.address,
    to: deployer.address,
    value: metaTransferAmount,
    validAfter: 0,
    validBefore: Math.floor(Date.now() / 1000) + 3600,
    nonce: metaTransferNonce,
  };
  const metaTransferSignature = await user.signTypedData(
    typedDataDomain,
    {
      TransferWithAuthorization: [
        { name: "from", type: "address" },
        { name: "to", type: "address" },
        { name: "value", type: "uint256" },
        { name: "validAfter", type: "uint256" },
        { name: "validBefore", type: "uint256" },
        { name: "nonce", type: "bytes32" },
      ],
    },
    metaTransferMessage
  );
  const {
    v: metaTransferV,
    r: metaTransferR,
    s: metaTransferS,
  } = ethers.Signature.from(metaTransferSignature);

  // 릴레이어에게 vrs 전달
  await axios.post(`${RELAYER_API_URL}/relay/transfer`, {
    from: user.address,
    to: deployer.address,
    value: metaTransferAmount.toString(),
    validAfter: 0,
    validBefore: metaTransferMessage.validBefore,
    nonce: metaTransferNonce,
    signature: { v: metaTransferV, r: metaTransferR, s: metaTransferS },
  });

  const afterMetaTransferBalances = await getBalances();
  console.log(
    `유저가 지불한 가스비: ${ethers.formatEther(
      afterDirectTransferBalances.userBalance -
        afterMetaTransferBalances.userBalance
    )} AVAX`
  );
  console.log(
    `릴레이어가 지불한 가스비: ${ethers.formatEther(
      afterDirectTransferBalances.relayerBalance -
        afterMetaTransferBalances.relayerBalance
    )} AVAX`
  );

  console.log(`\n----------------------------------------`);

  // -----------------------------------------------------
  // 예치 테스트
  // -----------------------------------------------------
  console.log(`[예치 테스트]`);

  const beforeDepositBalances = await getBalances();

  // 1. 일반 예치 (approve 후 deposit)
  console.log(`deposit`);
  const standardDepositAmount = ethers.parseEther("10");
  await (
    await tokenContract
      .connect(user)
      .approve(VAULT_ADDRESS, standardDepositAmount)
  ).wait();
  await (
    await vaultContract.connect(user).deposit(standardDepositAmount)
  ).wait();

  const afterStandardDepositBalances = await getBalances();

  console.log(
    `유저가 지불한 가스비: ${ethers.formatEther(
      beforeDepositBalances.userBalance -
        afterStandardDepositBalances.userBalance
    )} AVAX`
  );

  // 2. permit + deposit  (릴레이어가 가스 지불)
  console.log(`permit + deposit`);
  const metaDepositAmount = ethers.parseEther("10");
  const permitNonce = await tokenContract.nonces(user.address);
  const permitDeadline = Math.floor(Date.now() / 1000) + 3600;

  const permitSignature = await user.signTypedData(
    typedDataDomain,
    {
      Permit: [
        { name: "owner", type: "address" },
        { name: "spender", type: "address" },
        { name: "value", type: "uint256" },
        { name: "nonce", type: "uint256" },
        { name: "deadline", type: "uint256" },
      ],
    },
    {
      owner: user.address,
      spender: VAULT_ADDRESS,
      value: metaDepositAmount,
      nonce: permitNonce,
      deadline: permitDeadline,
    }
  );
  const {
    v: permitV,
    r: permitR,
    s: permitS,
  } = ethers.Signature.from(permitSignature);

  // 릴레이어에게 vrs 전달
  await axios.post(`${RELAYER_API_URL}/relay/deposit`, {
    owner: user.address,
    amount: metaDepositAmount.toString(),
    deadline: permitDeadline,
    signature: { v: permitV, r: permitR, s: permitS },
  });

  const afterMetaDepositBalances = await getBalances();
  console.log(
    `유저가 지불한 가스비: ${ethers.formatEther(
      afterStandardDepositBalances.userBalance -
        afterMetaDepositBalances.userBalance
    )} AVAX`
  );
  console.log(
    `릴레이어가 지불한 가스비: ${ethers.formatEther(
      afterStandardDepositBalances.relayerBalance -
        afterMetaDepositBalances.relayerBalance
    )} AVAX`
  );

  console.log(`\n----------------------------------------`);
}

main().catch((error) => {
  console.error(error);
  process.exitCode = 1;
});

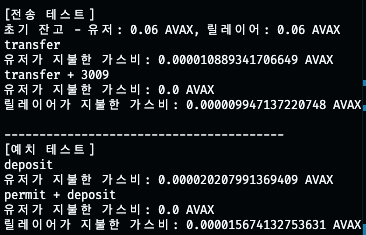

1. 전송 테스트
   • transfer
     • https://snowtrace.io/tx/0xbda1465039540ae3c1554a8bc91e19a8862a40727d835ee2537f9d37a46e372e?chainid=43114 (transfer)
     • 사용자가 트랜잭션을 직접 실행하므로 가스비 지불
   • transfer + 3009
     • https://snowtrace.io/tx/0x613e3048c5d57d69409665efba8abdc8e9106de417a5b4b22aff4477ef0e2fff?chainid=43114 (transferWithAuthorization)
     • 사용자는 서명만 생성, Relayer가 가스비를 대납. 결과적으로 사용자의 가스비 소모는 0
2. 예치 테스트
   • approve + deposit
     • https://snowtrace.io/tx/0x7a913bc8518e1c66d00de8ed08f4c28a6f23c72e775a8926ef0d55c2c55d7420?chainid=43114 (approve) https://snowtrace.io/tx/0xa64118d6b9d3f443168388df10ae805dff6122b65a042d1cb2fcf17f55d9443f?chainid=43114 (deposit)
     • 승인(Approve)과 예치(Deposit) 2회의 트랜잭션으로 인해 높은 가스비 지불
   • permit + deposit
     • https://snowtrace.io/tx/0xd4f6ec4948f615318ef98eade2789d167d89f3cab2e891056cef20c9d46ed207?chainid=43114 (depositWithPermit)
     • Permit 기능을 통해 단일 트랜잭션으로 처리되었으며, 사용자의 가스비 소모는 0이고 relayer도 단일 트랜잭션으로 인해 상대적으로 적은 가스비 지불

const { ethers } = require("hardhat");
const axios = require("axios");

const TOKEN_ADDRESS = "0x370DA190a3e39338c78f65E67cBD1D38e5592EbA";
const SERVER_URL = "http://localhost:3000";

async function main() {
  const [, relayer, user] = await ethers.getSigners();

  // EIP-712 설정 (vrs)
  const { chainId } = await ethers.provider.getNetwork();
  const typedDataDomain = {
    name: "MetaToken",
    version: "1",
    chainId,
    verifyingContract: TOKEN_ADDRESS,
  };
  const transferWithAuthTypes = [
    { name: "from", type: "address" },
    { name: "to", type: "address" },
    { name: "value", type: "uint256" },
    { name: "validAfter", type: "uint256" },
    { name: "validBefore", type: "uint256" },
    { name: "nonce", type: "bytes32" },
  ];
  const signTransferAuth = async (message) => {
    const sig = await user.signTypedData(
      typedDataDomain,
      { TransferWithAuthorization: transferWithAuthTypes },
      message
    );
    return ethers.Signature.from(sig);
  };

  const amount = ethers.parseEther("10");
  const tamperAmount = ethers.parseEther("1000");

  // -----------------------------------------------------
  // 데이터 위변조 테스트
  // -----------------------------------------------------
  console.log(`[데이터 위변조 (value 변경)]`);

  const nonce1 = ethers.hexlify(ethers.randomBytes(32));
  const msg1 = {
    from: user.address,
    to: relayer.address,
    value: amount,
    validAfter: 0,
    validBefore: Math.floor(Date.now() / 1000) + 3600,
    nonce: nonce1,
  };
  const sig1 = await signTransferAuth(msg1);

  try {
    await axios.post(`${SERVER_URL}/relay/transfer`, {
      from: user.address,
      to: relayer.address,
      value: tamperAmount.toString(), // value 변경 (10 -> 1000)
      validAfter: 0,
      validBefore: msg1.validBefore,
      nonce: nonce1,
      signature: { v: sig1.v, r: sig1.r, s: sig1.s },
    });
    console.log(`실패: 위변조 요청 통과`);
  } catch {
    console.log(`성공: 위변조 요청 거절`);
  }
  console.log(`\n----------------------------------------`);

  // -----------------------------------------------------
  // vrs 조작 테스트
  // -----------------------------------------------------
  console.log(`[vrs 조작 (s값 변경)]`);

  const nonce2 = ethers.hexlify(ethers.randomBytes(32));
  const msg2 = { ...msg1, nonce: nonce2 };
  const sig2 = await signTransferAuth(msg2);
  const tamperedS = "0x" + (BigInt(sig2.s) + 1n).toString(16);

  try {
    await axios.post(`${SERVER_URL}/relay/transfer`, {
      from: user.address,
      to: relayer.address,
      value: amount.toString(),
      validAfter: 0,
      validBefore: msg2.validBefore,
      nonce: nonce2,
      signature: { v: sig2.v, r: sig2.r, s: tamperedS },
    });
    console.log(`실패: vrs 조작 통과`);
  } catch {
    console.log(`성공: vrs 조작 거절`);
  }
  console.log(`\n----------------------------------------`);
  // -----------------------------------------------------
  // Replay 테스트
  // -----------------------------------------------------
  console.log(`[재전송 공격 (Replay)]`);

  const nonce3 = ethers.hexlify(ethers.randomBytes(32));
  const msg3 = { ...msg1, nonce: nonce3 };
  const sig3 = await signTransferAuth(msg3);

  const payload = {
    from: user.address,
    to: relayer.address,
    value: amount.toString(),
    validAfter: 0,
    validBefore: msg3.validBefore,
    nonce: nonce3,
    signature: { v: sig3.v, r: sig3.r, s: sig3.s },
  };

  process.stdout.write("1차 전송");
  try {
    await axios.post(`${SERVER_URL}/relay/transfer`, payload);
    console.log("OK");
  } catch {
    console.log("실패");
    return;
  }

  process.stdout.write("2차 전송");
  try {
    await axios.post(`${SERVER_URL}/relay/transfer`, payload);
    console.log(`실패: replay 통과`);
  } catch {
    console.log(`성공: replay 거절`);
  }
  console.log(`\n----------------------------------------`);
}

main().catch((error) => {
  console.error(error);
  process.exitCode = 1;
});

1. 데이터 위변조 테스트
   • 사용자가 10MTK를 전송하는 것에 서명, Relayer가 1000MTK를 전송하는 것으로 변조
   • 컨트랙트는 EIP-712 표준으로 생성된 해시 + vrs로 사용자의 주소를 역산하므로 공격자가 의도적으로 데이터를 변경하더라도 엉뚱한 주소가 도출된다.
2. 서명값 조작 테스트
   1. 공격자가 데이터는 건드리지 않고, s의 값을 변형하여 유효한 서명인 것처럼 제출
   2. 2612, 3009가 상속받는 ECDSA 모듈이 서명값의 표준을 체크하여 내부적으로 트랜잭션을 revert 처리한다.
3. 재전송 테스트
   • 공격자가 이미 처리된 정상적인 서명 데이터를 다시 제출하여 이중 출금을 시도
   • 2612, 3009는 서명 생성 시 사용한 nonce의 유효성을 체크하여 중복 nonce의 경우 내부적으로 revert 처리한다.
